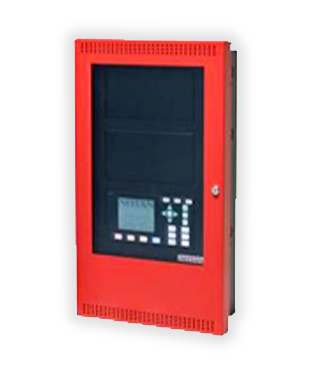

NFU-7000 Network Fire Alarm Control Panel FIRE ALARM CONTROL • One driver card capable of 2 loops is equipped as standard • NFU-7000 has 3 capability of driver card storage (max 6 loops), NFU-7000-L has 7 capability (max 14 loops) • One loop supports 254 addresses which can be wired in Class A (Style 6 or 7) or Class B (Style 4) • Use of shielded cable is not required for SLC loops • Modular design • Four Class A/B (Style Z/Y) Notification Appliance Circuits rated at 1.7 Amps each • One Auxiliary power supply, rated 1.7 Amps at 24VDC in addition to one resettable 4-wire power supply • Large 16 line x 40 character Back-lit LCD Display with user friendly menu • Correlatable Switch Inputs which allow for multifunctional outputs • Four Status Queues with selector switches and LEDs for Alarm, Supervisory, Trouble and Monitor • Auxiliary relay contacts for Common Alarm, Common Supervisory and Common Trouble • RS-232 port for remote system printer • Two Event History Logs comprised of a 1000 event alarm history log for alarm related events and a 5000 event log for all events • Supports three configuration files (current, previous and next configuration) with “hot swap” support • Supports Conventional Hardwire Adder Modules • Built-in One Man Walk Test operation • Provides drift compensation for Photoelectric Smoke Detectors • Capability to adjust Intelligent Smoke Detector sensitivity levels • Real time 3D graphical monitoring and control using Nittan’s NFU-Graphic-monitor • BACnet support • Supports Boolean logic functions • Built-in Ethernet port • UL listed for Smoke Control • Manual Control Function • Input Simulation Function • Multiple group bypass function with built-in false alarm prevention technology - Network Node Bypass - Node Outputs Bypass - Input Zone Bypass - Relay Disconnect - Device/Circuit Bypass NETWORKS FEATURES • Up to 63 panels • Peer-to-peer network communications • Mutual surveillance / 2 way control available • Class A (Style 6 or 7) or Class B (Style 4) wiring configuration • Arcnet Network Communications protocol • Supports copper and/or fiber optic network cable

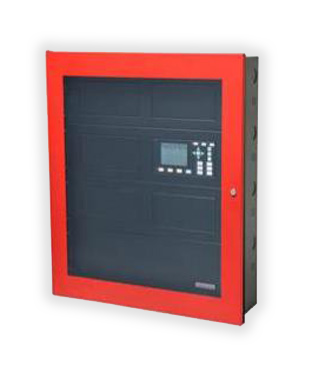

NFU-7000-L Network Fire Alarm Control Panel FIRE ALARM CONTROL • One driver card capable of 2 loops is equipped as standard • NFU-7000 has 3 capability of driver card storage (max 6 loops), NFU-7000-L has 7 capability (max 14 loops) • One loop supports 254 addresses which can be wired in Class A (Style 6 or 7) or Class B (Style 4) • Use of shielded cable is not required for SLC loops • Modular design • Four Class A/B (Style Z/Y) Notification Appliance Circuits rated at 1.7 Amps each • One Auxiliary power supply, rated 1.7 Amps at 24VDC in addition to one resettable 4-wire power supply • Large 16 line x 40 character Back-lit LCD Display with user friendly menu • Correlatable Switch Inputs which allow for multifunctional outputs • Four Status Queues with selector switches and LEDs for Alarm, Supervisory, Trouble and Monitor • Auxiliary relay contacts for Common Alarm, Common Supervisory and Common Trouble • RS-232 port for remote system printer • Two Event History Logs comprised of a 1000 event alarm history log for alarm related events and a 5000 event log for all events • Supports three configuration files (current, previous and next configuration) with “hot swap” support • Supports Conventional Hardwire Adder Modules • Built-in One Man Walk Test operation • Provides drift compensation for Photoelectric Smoke Detectors • Capability to adjust Intelligent Smoke Detector sensitivity levels • Real time 3D graphical monitoring and control using Nittan’s NFU-Graphic-monitor • BACnet support • Supports Boolean logic functions • Built-in Ethernet port • UL listed for Smoke Control • Manual Control Function • Input Simulation Function • Multiple group bypass function with built-in false alarm prevention technology - Network Node Bypass - Node Outputs Bypass - Input Zone Bypass - Relay Disconnect - Device/Circuit Bypass NETWORKS FEATURES • Up to 63 panels • Peer-to-peer network communications • Mutual surveillance / 2 way control available • Class A (Style 6 or 7) or Class B (Style 4) wiring configuration • Arcnet Network Communications protocol • Supports copper and/or fiber optic network cable

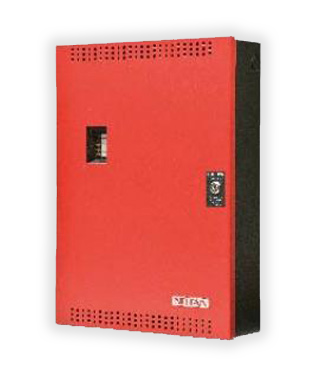

NFU-PS-10A Auxiliary Power Supply / NAC Expander • 10 Amp output • 120 / 240V operation • Works with listed SPERA™ Series Fire Alarm Control Panels • Easily configured using DIP switches • One isolated input from the host panel • Five Class B (Style Y) or Class A (Style Z) synchronized output circuits • DC regulated outputs • Configurable AC Power fail delay • Ground fault enable or disable • Option available on configuration to enable or disable the battery charger on activation • Outputs individually controllable • Separate Relay for Ground Fault and Common Trouble available on terminals • Horn/Strobe synchronization protocols • Two-wire horn/strobe Sync Mode allows audible notification appliances (horns) to be silenced while visual notification appliances (strobes) continue to operate • Audible signals may be configured for Steady, Temporal Code, California Code and March Time • Output circuits four and five can be configured to provide auxiliary power for four-wire detectors or door holders. • Output fault notification to fire alarm control panel • Ability to sync outputs for multiple NFU-PS-10A units • 2.5 Amp max. current per output • 1.7 Amp auxiliary power output • Built-in charger for sealed lead acid or gel type batteries • Unit includes power supply, charger, red door, black backbox, transformer and battery leads • Compatible with any UL listed 24VDC conventional fire alarm control panel to provide Notification Appliance Circuit expansion

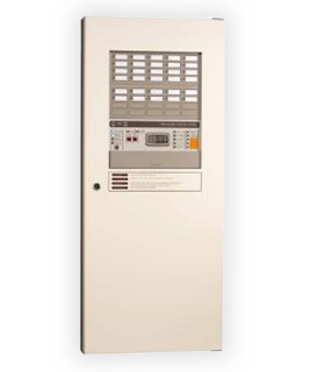

1PM3 Conventional Fire Alarm Control Panel, 10-40 zones • 10 to 40 zone model variation • Stylish wall-mount design • High reliable model with durable components, LED indicators and CPU • 10 to 20 circuit alarm bell zone(depends on the model) • Alarm delay function • Alarm delay ON/OFF switch • Trouble monitoring function • CPU trouble back-up function • Panel buzzer re-sounding function • Lightning surge protection • A function of interrupting zone alarm to prioritize emergency announcement • Three other alarm indicators for indicating inputs from building facilities • CPU trouble back-up function • Capability of transmitting the second fire signal • Signal transmitting to Emergency PA facility • Easy wiring by Plug-in type terminals one-touch connection • Color universal design for people with color vision deficiency

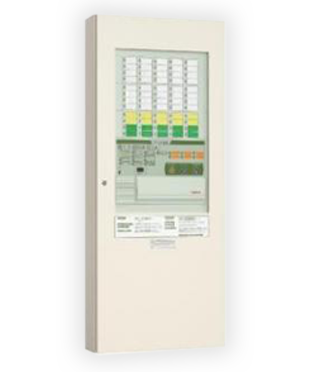

1PV0 Series Conventional Fire Alarm Control Panel, 10-160 zones • Large indicators and switches for easy operation • Digital display with 7 segments LEDs for identifying the alarm zone and detailed trouble • 6 LED indicators for Other Alarms • Panel buzzer beeps in sweep tone for making it easier to hear Available with End-of-line Resistors of 10 k?, 20 k? and CRE • Durable LED zone indicators • Maintenance switch for all alarm silence • Alarm delay ON/OFF switch • Plug-in type terminals • Auto reset switch used during a fire test and system check • Cursor switches on the panel for configuration at the installation site • Regular test feature: Performed per week on Zone circuits, Other Alarm circuits, Standby battery and Memory • Manual test features: System test, Fire test, Delay time measurement test, Battery test • Alarm delay feature (Verification feature) • Event history logs store up to 1000 of alarm events and operation histories • Zone isolation feature for partial operation and maintenance work False operation prevention feature • Monitors open circuits, short circuits and ground faults on external circuits • Lightning protection circuit for external lines • Standby Battery (Ni-Cd 24 VDC, sealed type) • Pair of Telephone handset for maintenance work • Available in 10 to 160 zone models • 1GPV0 is a Gas leakage alarm model • Supports Built-in emergency telephone system • Supports special order specifications: E.g. Panel color and size, Power supply capacity, Number of connectable telephones, Expansion relays, Auxiliary indicators and switches, Multiple annunciators, etc.
